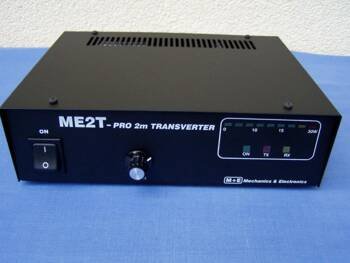

ME2T-PRO2 2m High performance transverter i fint skick, finns i Malmö.

Frequency Coverage: 144.0-146.0MHz band.
IF in/out Frequency : 14.0-16.0MHz
LO frq stability: Low phase noise TCXO, AXTAL 85dB
TRANSMITTING SECTION


Power Output: 30W continuous carrier.
IF power input: -20 to +37dBm (switchable built in att.) Single or 2x IF cable operation.
SWR input : 1:1.1
Emission modes : CW, SSB, FM, Digital
Harmonic Output Suppression: >70dB below rated output.
FEATURES

RA30H1317M Mitsubishi RF Power Module

LED bargraph Power meter

Variable output PWR (front page,5-30W)

SND jack for ext PAs (GND out when TX, open collector +50V/0.5A max)

ALC circuit

IF RF VOX

Built in heatsink temp. sensor

IF input & output BNC connectors

Common or separate 2m TX/RX connectors.

Second RX IF (SDR) output possibility

20A type DC connectors

Optional IF RX, TX and PTT cables

Built in jumperable IF amplifier to low out level radios(IC7600,7800,FTDX5000 )
