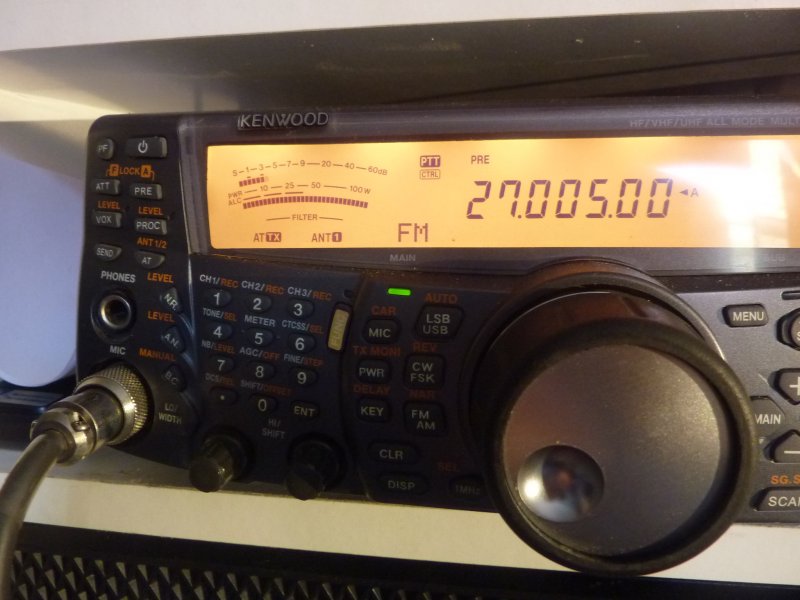

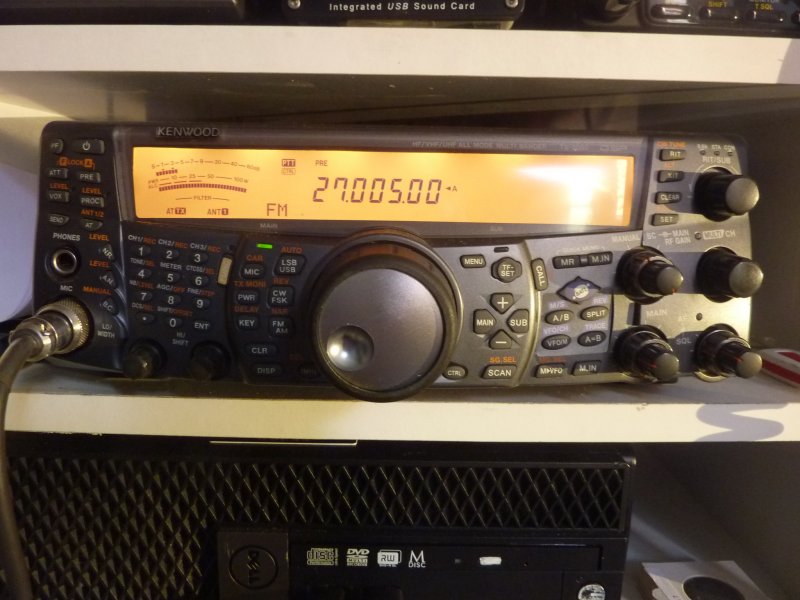

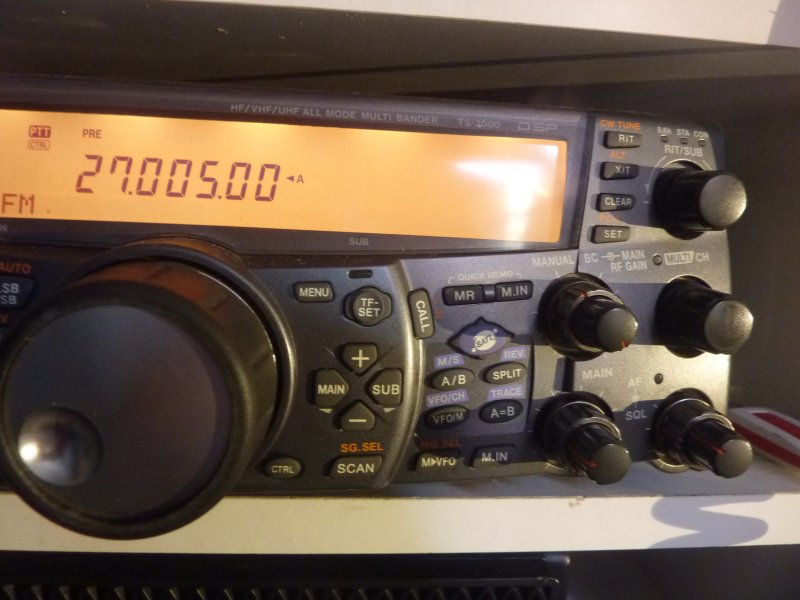

Radioen er til indbygning af 23 cm modul - dette er dog ikke inkluderet. Radioen fremtræder som ny og er i meget fin kosmetisk stand. Leveres med stemmemoduk, mikrofon, powerkabel.

GENERAL
Type: Amateur HF/VHF/UHF transceiver
Frequency range: TX: 10-160 m + WARC / 6 m / 2 m / 70 cm / 23 cm
RX: 0.03-60 / 118-174 / 220-512 / 1240-1300 MHz
Tuning steps: From 1 MHz down to 1 Hz
Frequency stability: ±0.5 ppm @ -10 to +50° C (14 to 122°F)
Mode: AM / FM / NFM / SSB / CW / FSK
Channels / memory management: 300 regular with alpha tags (7 characters)
Non-volatile EEPROM storage
Repeater shift / offset: ±0-59.95 MHz in 50 KHz steps
Power supply: 13.8 VDC ±15% (6-pin Molex)
Current drain / power consumption: RX: 2.6 A (Squelched)
TX: Max 20.5 A
Antenna impedance/connector: 50 ohm / Three SO-239, Two N-jacks
(16.7-150 ohm on HF/6 m with built-in autotuner)
Dimensions (W*H*D): 281*107*371 mm (11.06*4.21*14.61")
Weight: 8.2 Kg (18.1 lb)
Other features: CTCSS/PL, DCS. DSP. Built-in 1K2/9K6 TNC. Auto-AT on HF/6 m. DX-Cluster functions.
Can also be operated via computer or optional RC-2000 control head
Market codes: K = Americas, E = Europe, E2 = Spain




RECEIVER SECTION
Receiver system: Quadruple conversion superheterodyne (Main transceiver, except FM)
1st IF: 69.085 or 75.925 MHz (HF/6 m), 41.895 MHz (118-512 MHz), 135.495 MHz (1240-1300 MHz)
2nd IF: 10.695 MHz
3rd IF: 455 KHz
4th IF: 12 KHz (Except FM)
Double conversion superheterodyne (Sub-receiver)
1st IF: 58.525 MHz
2nd IF: 455 KHz
Sensitivity: Main - AM (10 dB S/N)
0.5-1.7 MHz: 31.6 uV
1.7-24.5 MHz: 2 uV
24.5-30 MHz: 1.3 uV
50-54 MHz: 1.3 uV
144-146 MHz: 1 uV (All E-types)
144-148 MHz: 1.4 uV (K-type)
430-450 MHz: 1 uV
1240-1300 MHz: 1 uV
Main - FM (12 dB SINAD)
28-30 MHz: 0.22 uV
50-54 MHz: 0.22 uV
144-146 MHz: 0.18 uV (All E-types)
144-148 MHz: 0.25 uV (K-type)
430-450 MHz: 0.18 uV
1240-1300 MHz: 0.18 uV
Main - SSB/CW/FSK (10 dB S/N)
0.5-1.7 MHz: 4 uV
1.7-24.5 MHz: 0.2 uV
24.5-30 MHz: 0.13 uV
50-54 MHz: 0.13 uV
144-146 MHz: 0.11 uV (All E-types)
144-148 MHz: 0.16 uV (K-type)
430-450 MHz: 0.11 uV
1240-1300 MHz: 0.11 uV
Sub - AM (10 dB S/N)
144-146 MHz: 1.55 uV (All E-types)
144-148 MHz: 2.25 uV (K-type)
430-450 MHz: 1.55 uV
Sub - FM (12 dB SINAD)
144-146 MHz: 0.28 uV (All E-types)
144-148 MHz: 0.40 uV (K-type)
430-450 MHz: 0.28 uV
Selectivity: Main - AM (Lo-cut: 100 Hz/Hi-cut: 3000 Hz)
6 KHz (-6 dB)
12 KHz (-50 dB)
Main - FM
12 KHz (-6 dB)
25 KHz (-50 dB)
Main - SSB (Lo-cut: 300 Hz/Hi-cut: 2600 Hz)
2.2 KHz (-6 dB)
4.4 KHz (-60 dB)
Sub - AM
12 KHz (-6 dB)
25 KHz (-50 dB)
Sub - FM
12 KHz (-6 dB)
25 KHz (-50 dB)
Image rejection: Main: 70 dB
Sub: 60 dB
AF output power / speaker: 1.5 W at 10% distortion / 8 ohm
External speaker connector: Two 3.5 mm, 8 ohm




TRANSMITTER SECTION
RF output power:

HF 6 m 2 m 70 cm 23 cm
AM: 5-25 W 5-25 W 5-25 W 5-12.5 W 1-2.5 W
FM/NFM: 5-100 W 5-100 W 5-100 W 5-50 W 1-10 W
SSB (PEP): 5-100 W 5-100 W 5-100 W 5-50 W 1-10 W
CW/FSK: 5-100 W 5-100 W 5-100 W 5-50 W 1-10 W
Modulation system: AM: Low level
FM: Reactance
SSB: Balanced
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: HF: Better than -50 dB
6 m to 70 cm: Better than -60 dB
Microphone impedance / connector: 600 ohm (Optimal) / 8-pin (Metal locking ring connector)
Microphone input level: ? mV
