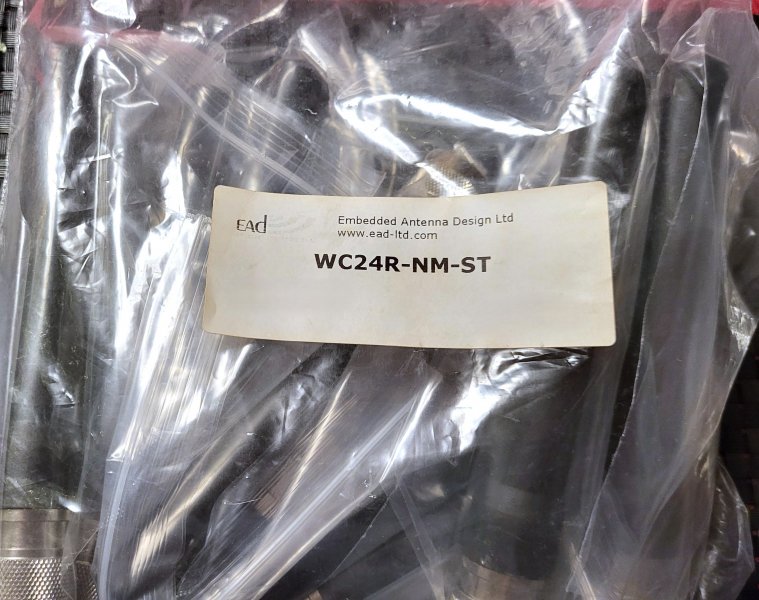

The EAD (Embedded Antenna Design) WC24R-NM-ST is a specific model of antenna designed for the 2.4 GHz frequency band. It is primarily used for industrial, commercial, and telematics applications involving technologies like WiFi, Bluetooth, and Zigbee.


Specification Detail
Manufacturer Embedded Antenna Design (EAD)
Frequency Range 2.4 GHz (2400 MHz to 2483.5 MHz)
Gain 2 dBi

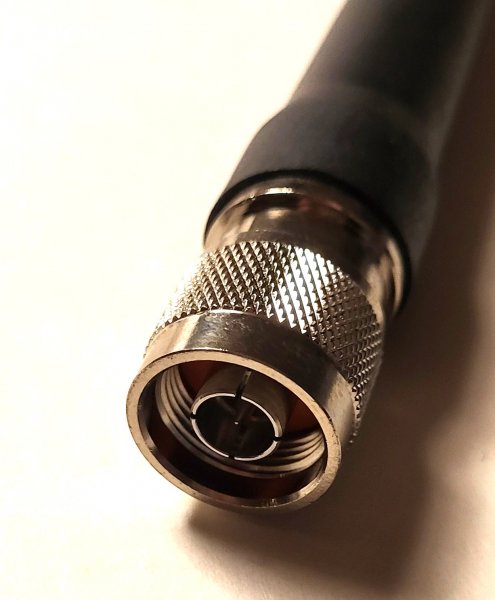

Connector Type N Male
Polarization Linear
Wavelength 1/2 Wave, 1/4 Wave

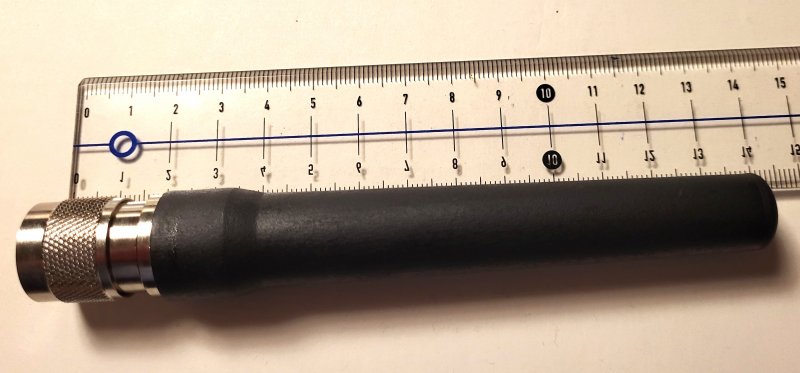

Length 116 mm
Power Rating 10 W
VSWR 2.5:1
