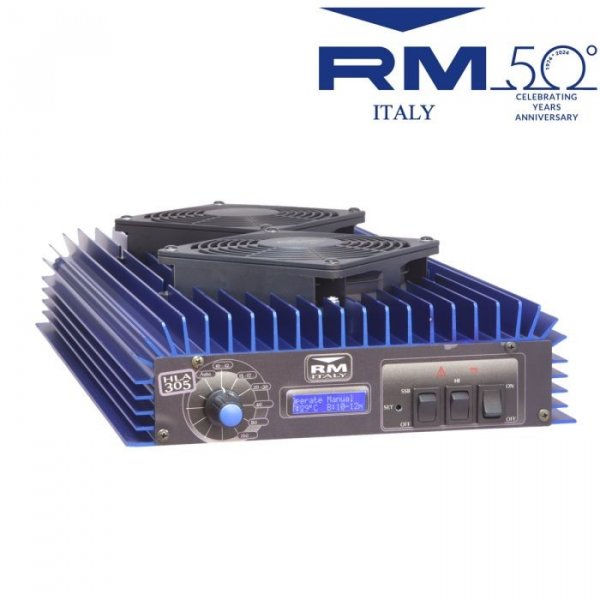

VELHOLDT RM HLA-305 V POWER AMP 1,6-30MHZ 1-10 WATT IND OP TIL 250 WATT UD.- AUTO BÅNDSKIFT- ELLER MANUELT SKIFT -

DATA: The HLA-305V operates from 1.8 - 30 MHz and its output power is 250W, with an input power of 1-10 Watt. There are 6 filters built-in to suppress harmonics, which are switched automatically but can also be switched manually for special operating conditions.


At the front panel there is a switchable input attenuator as well as a LC-display which can show input power, output power, heat sink temperature or output SWR. The intensity of the background light is adjustable. The CPU monitors input power, temperature and VSWR. Any error status are saved so that the manufacturer or authorised reseller can read them out for diagnose purposes. The PA has a PTT input (use for SSB recommended), but also a built-in HF-VOX.
For optimal heat distribution the PA transistors are mounted on a large copper heat spreader (200x60x3mm). The HLA-305V has an oversized heatsink with two temperature-controlled fans and therefore remains cool during operation. The DC cable is removable.
For operation the PA requires 13.5V at max. 45A, dimensions are about 240x420x80 mm and weight 4,3 Kg

KAN SENDES MED GLS FRAGT FRIT I DK
