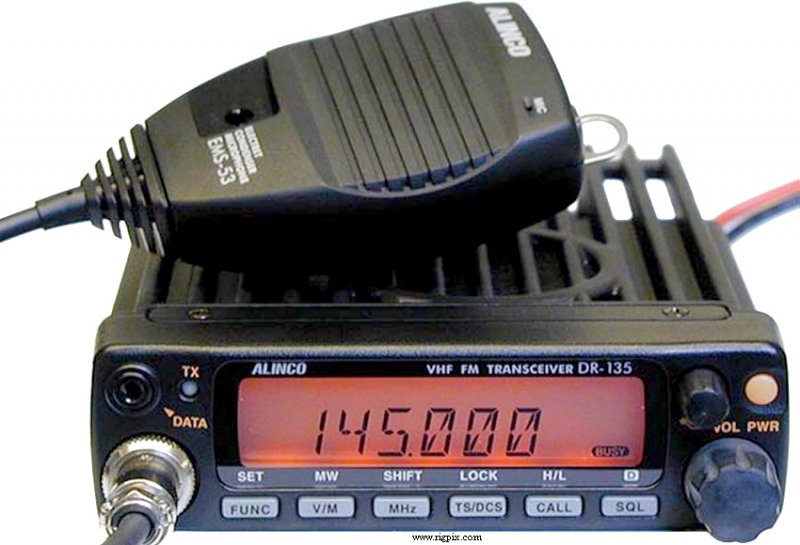

Type: Amateur VHF transceiver
Frequency range: Europe
TX: 144-146 MHz
RX: 118-174 MHz

NB! The extended RX frequency range
may require modification
Tuning steps: 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz
Frequency stability: ±5 ppm (No temperature reference)
Mode: TX: FM / NFM
RX: AM / FM / NFM
Channels / memory management: 100 regular with alpha tags
1 call
1 scan edge pair (Program scan)
10 DTMF autodial
Non-volatile EEPROM storage
Repeater shift / offset: ±0 to 99.995 MHz
Power supply: 13.8 VDC ±15%
Current drain / power consumption: RX: 400-600 mA
TX: Max 11 A
Antenna impedance / connector: 50 ohm / SO-239
Dimensions (W*H*D): 142*40*174 mm (5.51*1.58*6.85")
Weight: 1.0 Kg (2.2 lb)
Other features: CTCSS/PL and DCS with tone scan. GPS input for APRS. TNC option (EJ-41U).
1000 / 1450 / 1750 / 2100 Hz tone call. Theft alarm. Dimmer. Cloning.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 21.7 MHz
2nd IF: 450 KHz
Sensitivity: 0.25 uV (12 dB SINAD)
Selectivity: FM
12 KHz (-6 dB)
28 KHz (-60 dB)
NFM
6 KHz (-6 dB)
14 KHz (-60 dB)
Image rejection:
AF output power / speaker: 2 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm




TRANSMITTER SECTION
RF output power:

High Mid Low
2 m: 50 W 10 W 5 W
Modulation system: Variable reactance
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: Better than -60 dB
Microphone impedance / connector: 2 Kohm / 8-pin (Metal locking ring connector)
